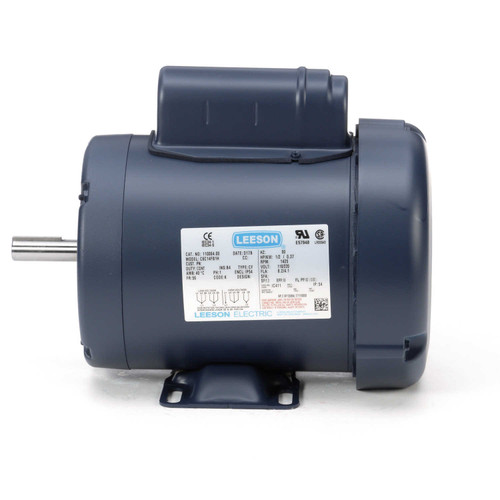

110064.00 Leeson | 1/2 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.

110064.00 Leeson | 1/2 hp 1425 RPM 56 Frame TEFC Rigid Base Motor

This Leeson 1/2 horsepower motor is designed for industrial applications requiring a 50 Hz power supply. It is suitable as a direct replacement for equipment operating at 1425 RPM with a rigid base mount configuration.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1425
• Voltage: 110/220V 50 Hz
• Amperage: 8.2/4.1 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame

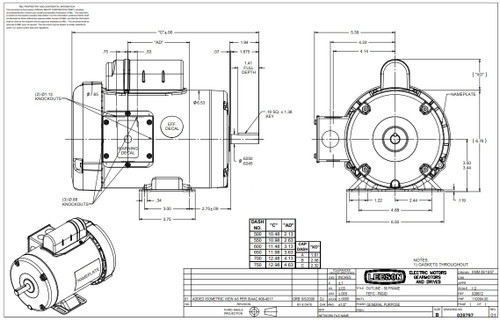

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and is equipped with Class B insulation. It has a service factor of 1.0 and does not include overload protection. Note that this motor is rated exclusively for 50 Hz operation and will not function properly on 60 Hz power systems; using 60 Hz power may cause damage.

Warranty

1 Year Manufacturer Warranty
