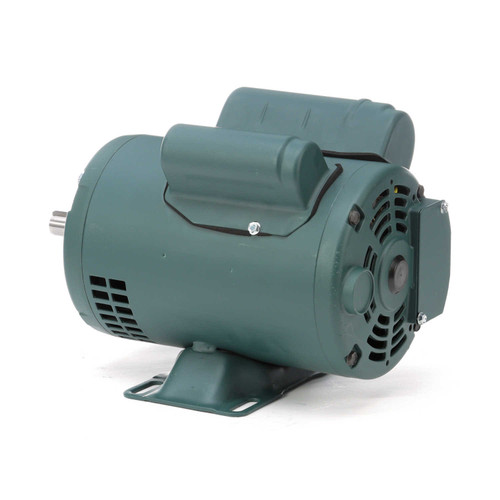

E100006.00 Leeson | 1/3 hp 1725 RPM 56 Frame 115/208-230 Volts Open Drip
(No reviews)
Write a Review
Write a Review
Leeson
E100006.00 Leeson | 1/3 hp 1725 RPM 56 Frame 115/208-230 Volts Open Drip
$483.00
$408.94
SKU
E100006.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/3 HP
RPM
1725
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
3.8/1.9 Amps
Bearings
Ball Bearings
Service Factor
1.35
Insulation Class
Class B
Mounting
Rigid Base
- 1/3 hp 1725 RPM, 3.8/1.9 amps 115/208-230 Volts 60hz. single Phase Motor

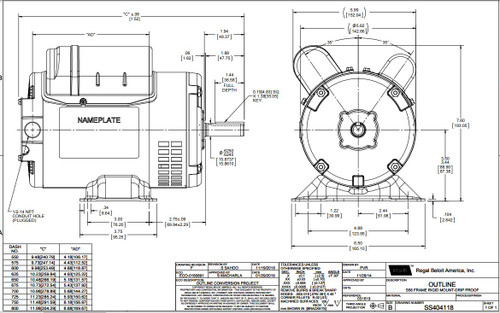

- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.35 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
C4K17DH5A, E100006.00
