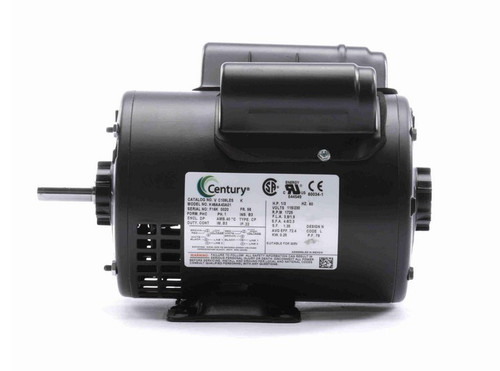

C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES
C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES

Century Electric Motor

C109LES Century 1/3 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # C109LES

(No reviews) Write a Review
$407.68
$345.46
SKU C109LES
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/3 HP
RPM 1800
Phase Single Phase
Frame 48
Enclosure ODP
Hertz 60 Hz
Amperage 3.8/1.9 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Single Phase
  • NEMA 48 frame, Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.35, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. C109LES

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/3 HP
RPM 1800
Phase Single Phase
Frame 48
Enclosure ODP
Hertz 60 Hz
Amperage 3.8/1.9 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Mounting Rigid Base
!
