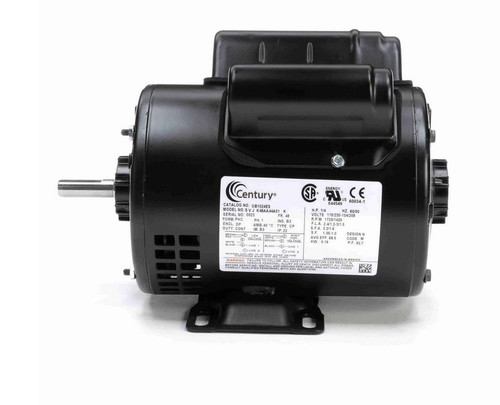

OB1024ES Century 1/4 hp 1800 RPM 1-Phase 48 Frame ODP (rigid base) 115/230V Century Motor # OB1024ES

SKU:
OB1024ES
Weight:
15.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $295.10
Now: $250.10
Adding to cart… The item has been added
  • 1/4 hp 1800 RPM, 2.4/1.2 amps 115/230 Volts 60hz. Single Phase
  • NEMA 48 frame, Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.35, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. OB1024ES
