114311.00 Leeson | 1/3 hp 1800 RPM 56C Frame (no base) C-Face 115/208-230V Wash Down Duty

114311.00 Leeson | 1/3 hp 1800 RPM 56C Frame (no base) C-Face 115/208-230V Wash Down Duty

This Leeson 1/3 HP single-phase motor is designed for wash down duty applications, featuring a moisture-resistant construction ideal for harsh environments. It replaces Marathon N531 and is suitable for industrial equipment requiring a durable, corrosion-resistant motor.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 6.4/3.2 A
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

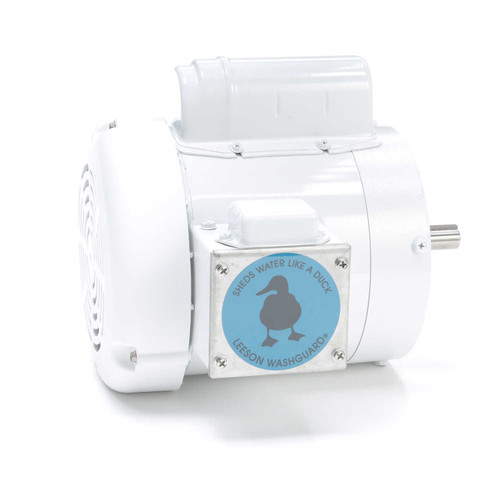

This Leeson Washguard motor features a round body design with no base and a C-face mounting configuration. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard for enhanced corrosion resistance. The motor is coated with durable Rust-Oleum white epoxy paint and incorporates special gaskets, slingers, seals, and four endshield drains to provide superior moisture protection. The IRIS insulation system and moisture-resistant interior components further ensure reliable operation in wash down environments.

Cross Reference

• Marathon N531, 056C17W5326

Warranty

1 Year Manufacturer Warranty
