114315.00 Leeson | 3/4 hp 1800 RPM 56C Frame (no base) C-Face 115/208-230V Wash Down Duty

114315.00 Leeson | 3/4 hp 1800 RPM 56C Frame (no base) C-Face 115/208-230V Wash Down Duty

This Leeson 3/4 hp single-phase motor operates at 1800 RPM and is designed for wash down duty applications. It replaces Marathon model N525 and is ideal for environments requiring moisture resistance and durability.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 10.8/5.4 A

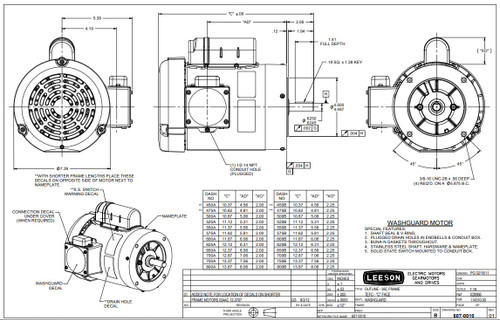

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Enclosure: Washguard (Round Body, No Base)

Product Features & Fitment

This motor features Leeson's original moisture-shedding "duck" design with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, and seals to enhance moisture protection. Four endshield drains and moisture-resistant interior components further improve reliability in wash down environments. The motor mounts via a C-face configuration without a base.

Cross Reference

• Marathon N525, 056C17W5328

Warranty

1 Year Manufacturer Warranty
