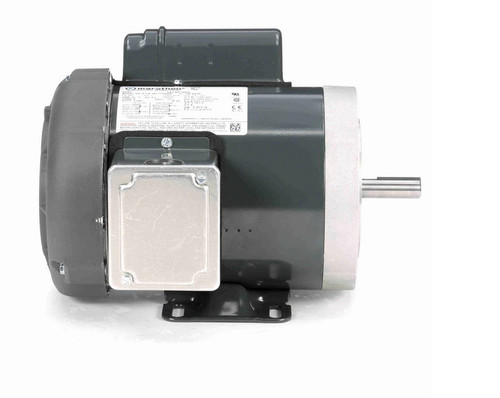

G570 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

G570 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

The G570 Marathon electric motor is a general-purpose, single-phase motor designed for applications requiring a C-face mount. It is suitable for replacing or installing in equipment such as pumps or gear heads that utilize a 56C frame motor.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 6.6/3.1-3.3 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This capacitor start motor features a removable base and a keyed shaft with a keyway for secure coupling. The motor includes four threaded bolt holes on the C-face, spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. A wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
