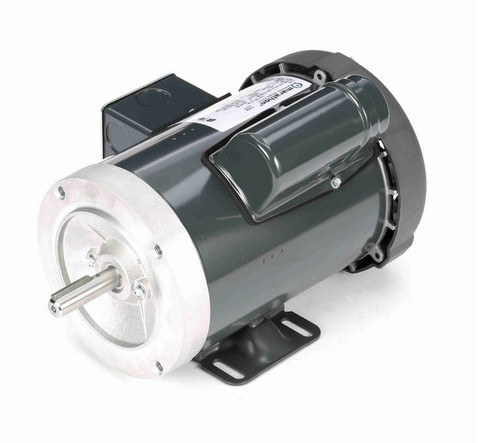

F134 Marathon 1 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

SKU:: F134
UPC:
Weight:: 35.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 50 Hz
Amperage:: 6.7 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $460.00

Now: $356.44

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

F134 Marathon 1 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon 1 hp single-phase electric motor operates at 1800 RPM and is designed for general-purpose applications requiring a C-face mount. It replaces Leeson M6C17FK80E (115879.00) and is suitable for driving pumps, gear heads, and other machinery.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/208-230 V
Amperage: 13.4/6.8-6.7 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 56C frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft for secure attachment of pumps or gear heads. It includes a shaft keyway for positive drive connection. Wiring diagrams are provided on the motor nameplate for easy installation.
