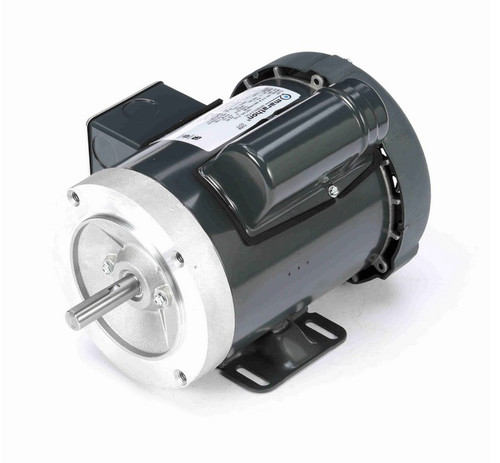

F132 Marathon 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

SKU:: F132
UPC:
Weight:: 25.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 4.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $338.79

Now: $296.13

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

F132 Marathon 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This general-purpose single-phase electric motor is designed for a wide range of industrial and HVAC applications requiring a C-face mount. It is a capacitor start motor suitable for replacing or upgrading existing motors with similar specifications.

Key Specifications

Horsepower: 1/2 hp
RPM: 1800
Voltage: 115/208-230V, 60 Hz
Amperage: 8.8/4.2-4.4 amps
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 56C frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. Overload protection is manual, and a wiring diagram is provided on the motor nameplate for straightforward installation.
