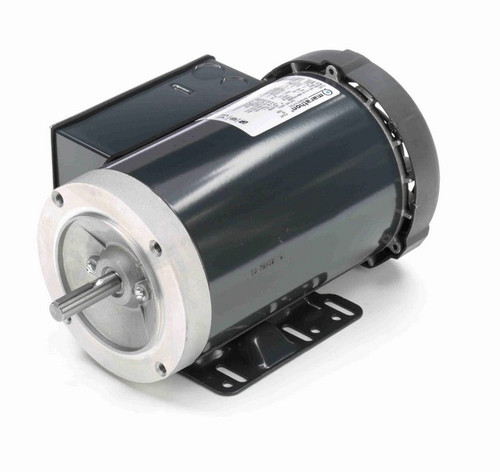

G574 Marathon 1 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

G574 Marathon 1 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon electric motor is a general-purpose, single-phase motor designed for various industrial and HVAC applications. It features a capacitor start and a C-face mount, making it suitable for replacing or upgrading existing motors requiring a 56HC frame.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 15.2/8.2-7.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56HC
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a removable base for flexible installation options and features a C-face with four threaded bolt holes spaced 5 7/8" on center for mounting pumps or gearheads. The shaft has a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
