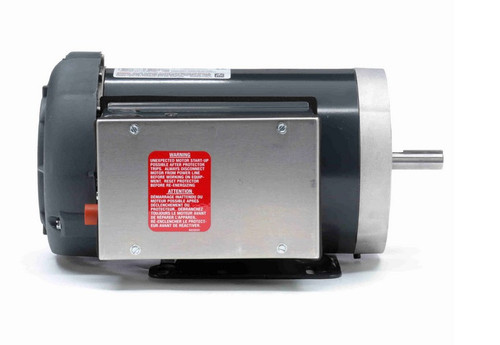

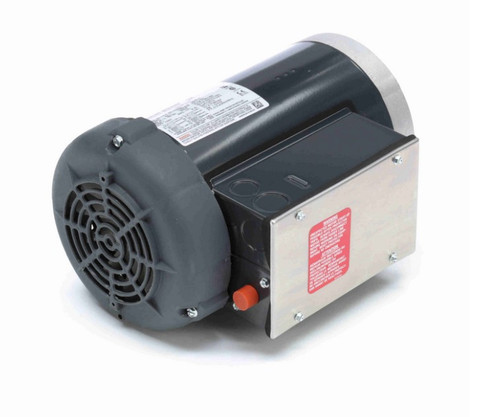

F135 Marathon 1 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

F135 Marathon 1 1/2 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon electric motor is a general-purpose, single-phase motor designed for various industrial and commercial applications. It features a capacitor start and a C-face mount, making it suitable for replacing or upgrading existing motors requiring a 56C frame and TEFC enclosure.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 15.2/8.2-7.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft features a keyway for secure coupling. Overload protection is manual, and a wiring diagram is provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
