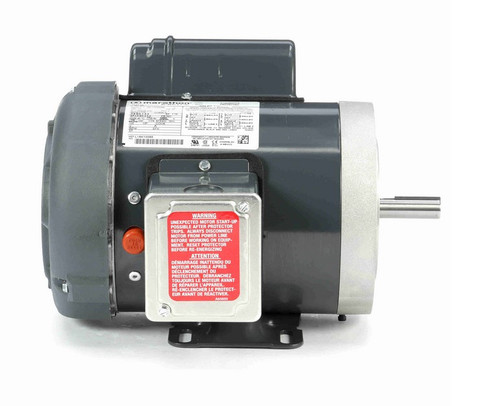

F131 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

F131 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon Electric Motor is a general-purpose, single-phase capacitor start motor designed for various industrial applications. It features a NEMA 56C C-face mount and replaces Leeson models M4C17FK7A (103082.00) and M6C17FK81E (116485.00).

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 6.6/3.1-3.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

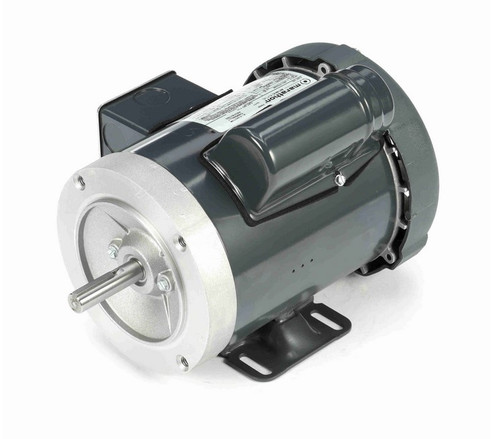

The motor includes a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft features a keyway for secure coupling. Overload protection is manual, and a wiring diagram is provided on the motor nameplate for straightforward installation.

Cross Reference

• Leeson M4C17FK7A, 103082.00, M6C17FK81E, 116485.00

Warranty

1 Year Manufacturer Warranty
