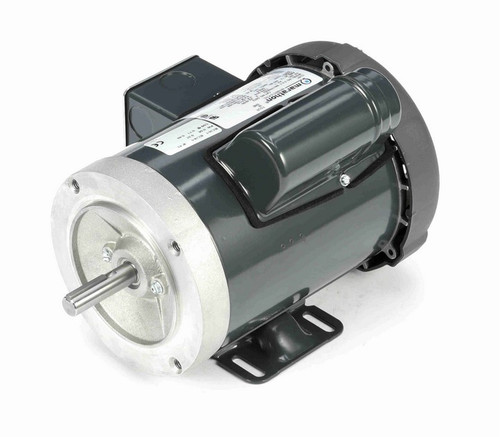

G572 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

G572 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon general-purpose electric motor delivers 3/4 horsepower at 1800 RPM and is designed for single-phase applications requiring a C-face mount. It is suitable for replacing or installing in equipment such as pumps or gear drives that match its mounting and electrical specifications.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 11.0/5.4-5.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a removable base and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
