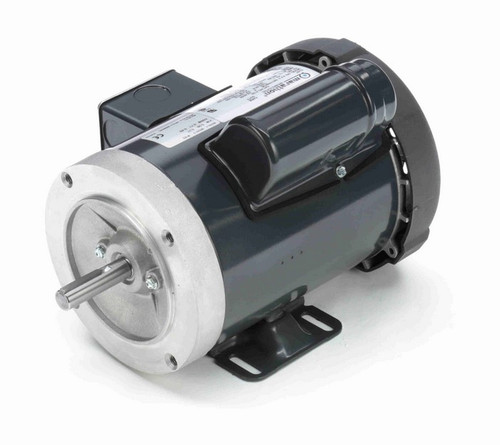

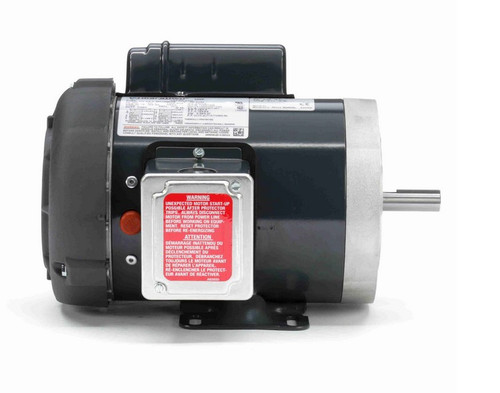

F133 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

F133 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon general-purpose electric motor delivers 3/4 horsepower at 1800 RPM and is designed for single-phase applications requiring a C-face mount. It replaces Leeson M6C17FK86D (116922.00) and is suitable for various industrial uses including pump and gear head mounting.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 11.0/5.4-5.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. It includes a manual overload protection and a wiring diagram located on the motor nameplate for straightforward installation.

Cross Reference

• Leeson M6C17FK86D, 116922.00

Warranty

1 Year Manufacturer Warranty
