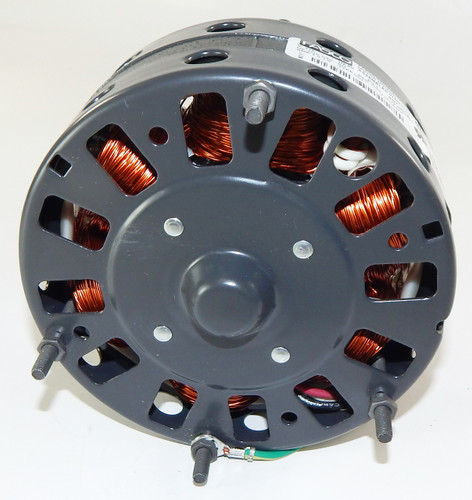

Fasco D143 Motor | 1/30 hp 1050 RPM 2-Speed CCW 5" Diameter 115 Volts

Fasco D143 Motor | 1/30 hp 1050 RPM 2-Speed CCW 5" Diameter 115 Volts

The Fasco D143 is a versatile 1/30 horsepower shaded pole motor designed for attic exhaust fans, rooftop ventilators, and similar air-over applications. It serves as a reliable replacement motor for Leslie Locke ventilators and other compatible systems requiring two-speed operation.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1050
• Voltage: 115 Volts
• Amperage: 1.5 amps
• Enclosure: Open Ventilation
• Frame / Diameter: 5" Diameter
• Shaft Dimensions: 1/2" x 1 5/8"
• Rotation: CCWSE (Counterclockwise Shaft End)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 4.62", facilitating straightforward installation in compatible ventilator housings. The motor length excluding the shaft measures 2 1/4", making it suitable for compact mounting spaces. Its shaded pole design ensures quiet operation with reliable air-over cooling.

Warranty

1 Year Manufacturer Warranty
