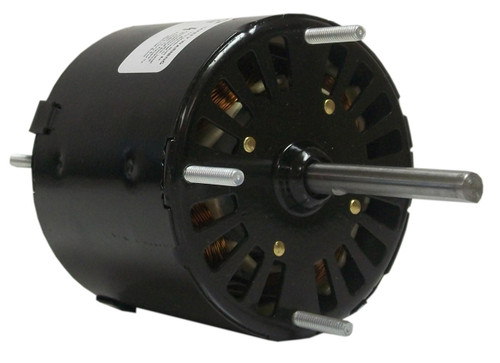

Fasco D514 Motor | 1/30 hp 1500 RPM CW 3.3" Diameter 115 Volts

Fasco D514 Motor | 1/30 hp 1500 RPM CW 3.3" Diameter 115 Volts

The Fasco D514 is a compact shaded pole motor designed for applications requiring reliable, low-horsepower performance. It serves as a direct replacement for Dayton 161M28 and is ideal for air circulation and ventilation tasks.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 1.3 Amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

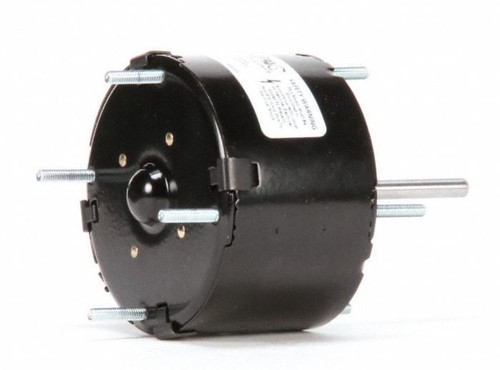

This motor features a stud mount with a 2.85" bolt circle and four studs on each end for secure installation. The motor length excluding the shaft measures 2 3/4". For customized fitment, the extra studs can be trimmed, and the shaft can be shortened if necessary.

Warranty

1 Year Manufacturer Warranty
