1269 Nidec | 1/30 hp 1600 RPM 3-Speed 115-127V; 5" Blower Motor

1269 Nidec | 1/30 hp 1600 RPM 3-Speed 115-127V; 5" Blower Motor

This 1/30 horsepower blower motor is designed for heat pump and furnace applications, providing reliable performance with three-speed operation. It serves as a suggested aftermarket replacement for models including IEC 70556329, K48HXGPN-4498, K048FKE1192011B, and Dayton 40LX73.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1600
• Voltage: 115-127V
• Amperage: 0.51 amps
• Enclosure: Open
• Frame / Diameter: 5" diameter
• Shaft Dimensions: 6.5" length x 1/2" diameter
• Rotation: Clockwise Shaft End (CWSE)
• Bearings: Ball bearings

Product Features & Fitment

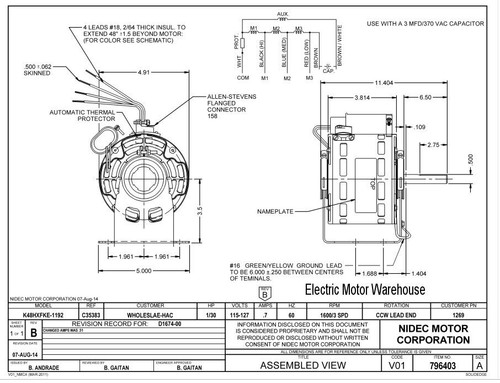

This permanent split capacitor motor includes a capacitor and features automatic overload protection for continuous duty operation. It is built with Class B insulation and rated for 40°C ambient temperature. The motor case length measures 3.814", and it comes with 48" leads for easy wiring during installation.

Cross Reference

• IEC 70556329, K48HXGPN-4498, K048FKE1192011B, Dayton 40LX73

Warranty

1 Year Manufacturer Warranty
