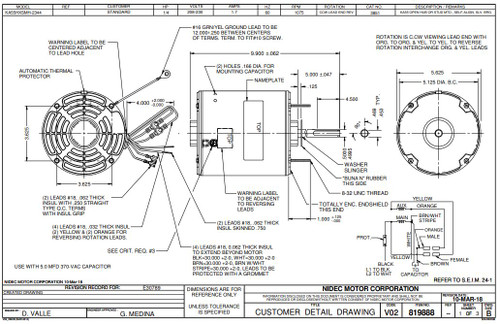

3851 Nidec | 1/4 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor

3851 Nidec | 1/4 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor

This 1/4 horsepower condenser motor is designed for HVAC applications requiring reliable, continuous duty performance. It serves as a direct replacement for motors with similar specifications, ensuring efficient operation in air conditioning and refrigeration systems.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.7 amps
• Enclosure: Open Drip-Proof Air Over
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" diameter x 5.0" length
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This permanent split capacitor motor features automatic overload protection and is rated for continuous duty with Class B insulation, suitable for ambient temperatures up to 60°C. The motor case length measures 3.8", and it includes a water slinger for added durability. It supports shaft mounting in either up or horizontal positions and requires a 5 MFD 370V capacitor (part #5DV) for operation. The motor comes with 30" leads for easy electrical connections.

Warranty

1 Year Manufacturer Warranty
