1860 Nidec | 1/4 hp 1075 RPM -Speed 208-230V; 5.6" Condenser Motor

1860 Nidec | 1/4 hp 1075 RPM 1-Speed 208-230V 5.6" Condenser Motor

This 1/4 horsepower condenser motor is designed for HVAC applications requiring reliable, continuous duty operation. It serves as a direct replacement for several popular models, ensuring compatibility and efficient performance in condenser fan assemblies.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.5 amps
• Enclosure: Totally Enclosed Air Over (TEAO)

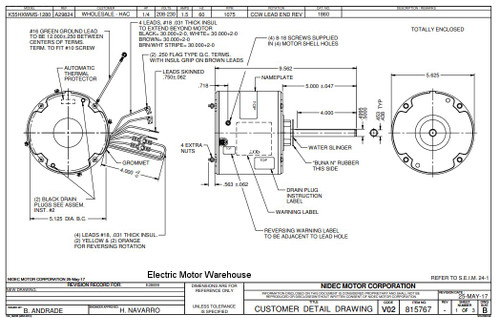

• Frame / Diameter: 5.6" diameter, 4.1" motor case length
• Shaft Dimensions: 1/2" diameter x 5" length
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This permanent split capacitor (PSC) motor includes automatic overload protection and is rated for continuous duty at 60°C ambient temperature. It requires a 5 MFD 370V capacitor (Part #5DV) for proper operation. The motor comes with 30" leads for easy electrical connections and fits applications cross-referenced with Century FSE1026SV1, Fasco D909, and other K55 series motors.

Warranty

1 Year Manufacturer Warranty
