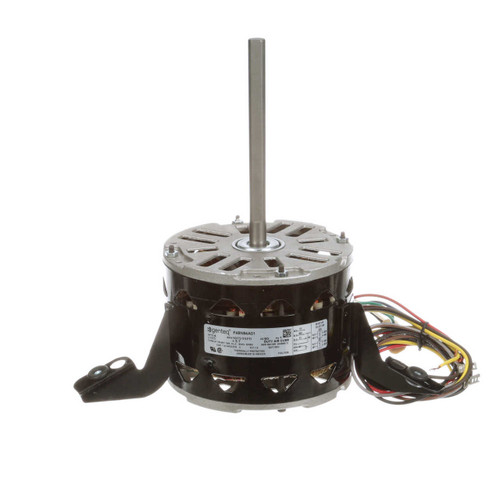

FML1026 Century 1/4 hp 1075 RPM 3-Speed 115V 5.6" Diameter Furnace Motor Century # FML1026

FML1026 Century 1/4 hp 1075 RPM 3-Speed 115V 5.6" Diameter Furnace Motor

This Century FML1026 is a direct drive furnace blower motor designed to replace OEM motors such as Century #FML1026, F48N84A01, and Dayton 48Z026. It is ideal for residential and light commercial HVAC applications requiring a reliable 3-speed motor.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 115 V, 60 Hz
• Amperage: 3.5 Amps
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" diameter x 5.5" length
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a torsion flex mount and all-angle mount sleeve bearings for versatile installation. It is thermally protected, UL recognized, and CSA certified with an open ventilated, air-over design. The motor length excluding the shaft is 4.11", and it comes with 24" leads for easy wiring. A 7.5 MFD 370V capacitor is required but not included. Suitable for operation in ambient temperatures up to 50°.

Warranty

1 Year Manufacturer Warranty
