Model 9432A Century 1/4 hp 1075 RPM 3-Speed 277V 5.6" Diameter Furnace Motor Century # 9432A

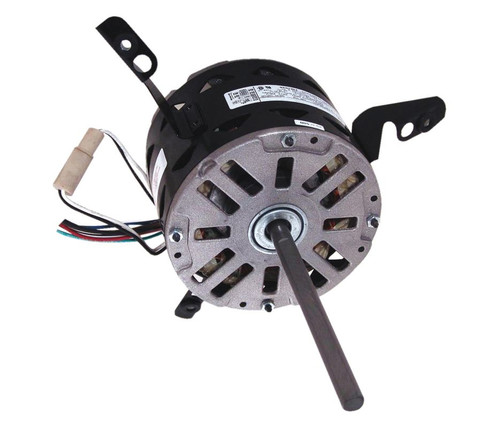

Model 9432A Century 1/4 hp 1075 RPM 3-Speed 277V 5.6" Diameter Furnace Motor

This Century Model 9432A is a direct drive furnace blower motor designed to replace compatible motors such as Century #9432A, F48Y94A01, and Dayton 48Z351. It is ideal for residential and commercial HVAC applications requiring reliable, multi-speed operation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 277 V
• Amperage: 1.2 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" x 5.5"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 3-speed design with torsion flex mounting and is thermally protected for safety. It includes 24" leads for easy wiring and requires a separate 5 MFD 370V capacitor (not included) for operation. The motor is open ventilated with air-over cooling and supports all-angle mounting with sleeve bearings, suitable for installations in ambient temperatures up to 60°C.

Warranty

1 Year Manufacturer Warranty
