5830 Nidec | 1/4 hp 1075 RPM 4-Speed 115V; 5.6" Blower Motor

5830 Nidec | 1/4 hp 1075 RPM 4-Speed 115V; 5.6" Blower Motor

This 1/4 horsepower blower motor is designed for furnace applications, offering reliable performance with a 4-speed operation. It serves as a direct replacement motor with reversible rotation and is suitable for continuous duty in HVAC systems.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 3.8 amps
• Enclosure: Open

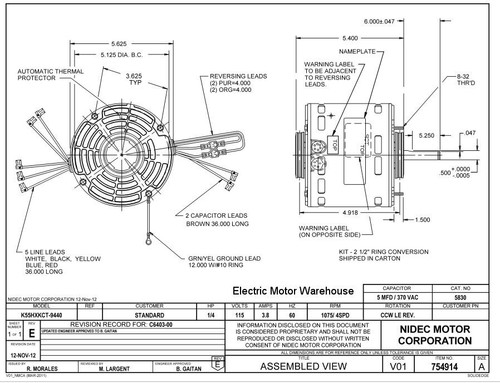

• Frame / Diameter: 5 5/8" diameter
• Shaft Dimensions: 6" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This permanent split capacitor motor includes automatic overload protection and is rated for Class B insulation with a 40°C ambient temperature. It requires a 5 MFD 370V capacitor (part #5DV) for operation. The motor case length measures 4.4", and it comes with 36" leads for easy wiring. Included are 2.25" diameter hub rings with a kit for 2.5" hubs to ensure proper mounting and fitment.

Warranty

1 Year Manufacturer Warranty
