5470 Nidec | 3/4 hp 1075 RPM 4-Speed 115V; 5.6" Blower Motor

5470 Nidec | 3/4 hp 1075 RPM 4-Speed 115V; 5.6" Blower Motor

This 3/4 horsepower blower motor is designed for HVAC applications requiring a reliable 4-speed operation. It is a direct replacement for Century DL1076 and Fasco D728 models, featuring a reversible rotation for versatile installation.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 8.1 amps
• Enclosure: Open Air Over

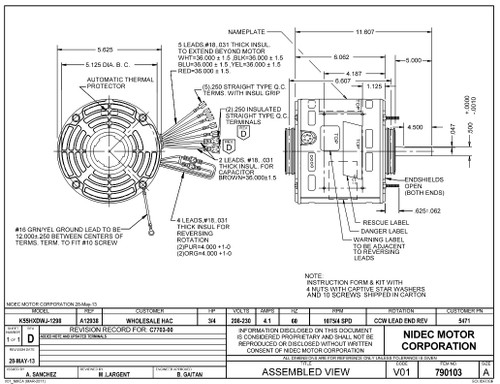

• Frame / Diameter: 5.6" diameter, motor case length 6.375"
• Shaft Dimensions: 0.5" x 5.0"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor includes a ring and stud mount with four holes in the shell for Rheem mounting compatibility. It requires a 20 MFD 370V capacitor (Part # 20DV) for proper operation. Designed for continuous duty with automatic overload protection, it features Class B insulation and is rated for 40°C ambient temperature. The motor comes with 36" leads and operates at 60 Hertz.

Warranty

1 Year Manufacturer Warranty
