5831 Nidec | 1/4 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor
5831 Nidec | 1/4 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor
5831 Nidec | 1/4 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor
5831 Nidec | 1/4 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor

Nidec

5831 Nidec | 1/4 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor

(No reviews) Write a Review
$202.40
$180.54
SKU 5831
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 1.1 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
Duty Continuous Duty
Adding to cart… The item has been added
Description

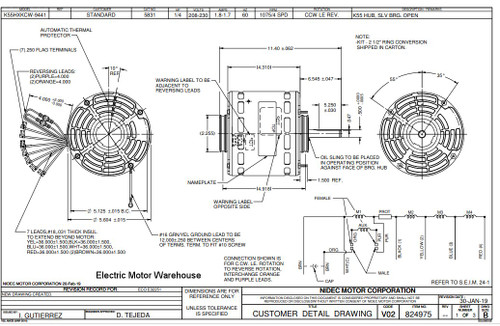

  • 1/4 hp 1075 RPM, 4-Speed 208-230V 1.1 amps
  • Shaft 6" x 1/2"
  • Rotation = Reversible
  • 5 5/8" Diameter
  • Motor case length 4.4"
  • Sleeve Bearings
  • 5MFD 370V Capacitor REQUIRED (Our Part #5DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Air Over; Class B Insulation; 40C Ambient Temperature; 36" Leads. Application: Furnace blower motor.  Includes 2.25" Dia. hub rings with kit for 2.5" included. Reference: K055KCW9441022B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 1.1 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
Duty Continuous Duty
!
