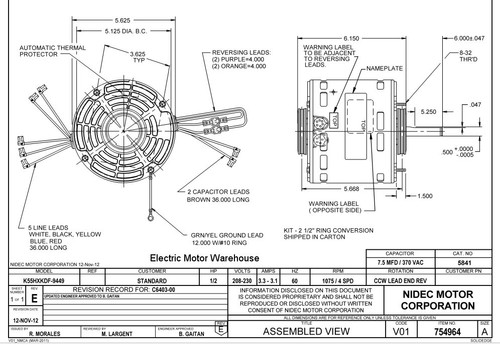

5841 Nidec | 1/2 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor

5841 Nidec | 1/2 hp 1075 RPM 4-Speed 208-230V; 5.6" Blower Motor

This 1/2 horsepower, 4-speed blower motor is designed for furnace applications, providing reliable airflow with a reversible rotation feature. It replaces compatible furnace blower motors requiring a 208-230V power supply and 1075 RPM operation.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 3.3 amps
• Enclosure: Open Air Over
• Frame / Diameter: 5 5/8" diameter
• Shaft Dimensions: 6" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This permanent split capacitor motor includes automatic overload protection and is rated for continuous duty with Class B insulation, suitable for ambient temperatures up to 40°C. It requires a 7.5 MFD 370V capacitor (sold separately, part #7.5DV). The motor case length measures 5.1", and it comes with 36" leads for easy wiring. Included are 2.25" diameter hub rings and a kit for 2.5" hubs to accommodate different blower wheel sizes.

Warranty

1 Year Manufacturer Warranty
