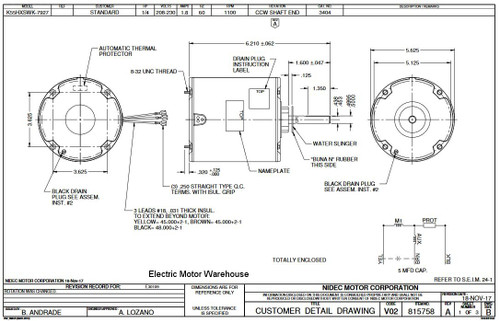

3404 Nidec | 1/4 hp 1100 RPM 1-Speed 208-230V; 5.6" Condenser Motor
3404 Nidec | 1/4 hp 1100 RPM 1-Speed 208-230V; 5.6" Condenser Motor
3404 Nidec | 1/4 hp 1100 RPM 1-Speed 208-230V; 5.6" Condenser Motor
3404 Nidec | 1/4 hp 1100 RPM 1-Speed 208-230V; 5.6" Condenser Motor

Nidec

3404 Nidec | 1/4 hp 1100 RPM 1-Speed 208-230V; 5.6" Condenser Motor

(No reviews) Write a Review
$279.45
$249.55
SKU 3404
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 1.8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/4 hp 1100 RPM 1-Speed 208-230V 1.8 amps
  • Shaft 1/2" x 1.6"
  • Rotation CW lead end
  • 5.6" Diameter
  • Motor case length 4.5"
  • Sleeve bearings
  • Stud Mounting
  • 5MFD 370V Capacitor REQUIRED (Our Part #5DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over; Class B Insulation; 40C Ambient Temperature; 45" Leads. Suggested replacement for Carrier Condenser fan motor HC39GE236, 5KCP39BGS071S, K055SWK7927013B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/4 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 1.8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
