3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor

3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor

SKU:
3042
Weight:
15.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $290.00
Now: $259.10
Adding to cart… The item has been added
  • 1/4 hp 1625 RPM 1-Speed 230V 1.4 amps
  • Shaft 1/2" x 1.5"
  • Rotation: CW shaft end

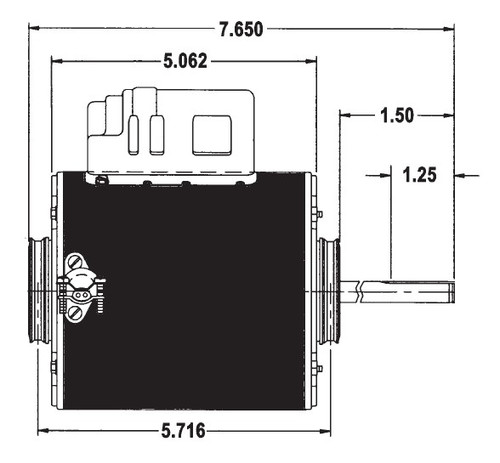

  • 5.6" Diameter
  • Motor case length 5.062"
  • Ball Bearings
  • 2-1/4" dia Resilient Ring Mount
  • Includes 4 MFD capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 60 Hertz. Application: Tyler A.C. Condenser fan motors. Suggested aftermarket replacement for 4KCP39EG755S, 5KCP39EN81S, 03042

!
