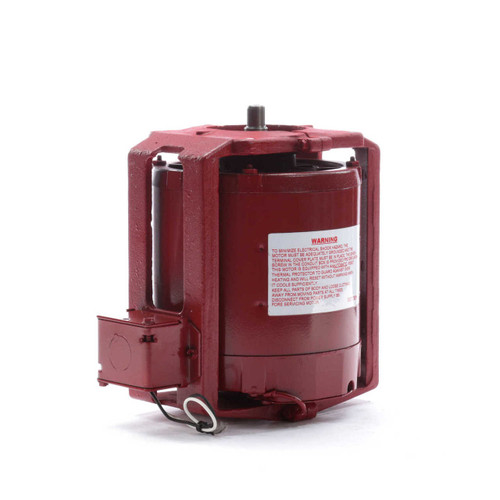

HW2024B1L Century 1/4 hp 1725 RPM 115V Hot Water Circulator Motor Century # HW2024B1L

HW2024B1L Century 1/4 hp 1725 RPM 115V Hot Water Circulator Motor

The HW2024B1L is a reliable 1/4 horsepower hot water circulator motor designed as a universal replacement for Bell & Gossett and Armstrong pumps. It is ideal for maintaining efficient hot water circulation in HVAC systems and matches several OEM part numbers for seamless integration.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Voltage: 115V 60Hz
• Amperage: 3.6 amps
• Shaft Dimensions: 1/2" diameter x 3/4" length
• Rotation: Counterclockwise (CCW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a 5" bolt circle with 5/16" x 18 UNC bolt holes for secure mounting. It is a direct replacement for Century motors and is compatible with Bell & Gossett part #111040, Armstrong part #817025-007 and #831002-061, Dayton 5DVX0, and Rotom CP-R1354 (reference S48AA32A01). The motor includes a 1.25 service factor for enhanced durability in hot water circulation applications.

Cross Reference

• Bell & Gossett 111040; Armstrong 817025-007, 831002-061. Dayton 5DVX0. Rotom Equivalent CP-R1354, reference S48AA32A01

Warranty

• Dimension Drawing
