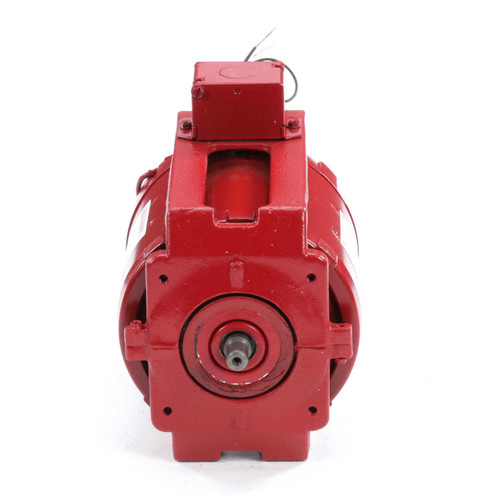

HW2014B1L Century 1/6 hp 1725 RPM 115V Hot Water Circulator Motor Century # HW2014B1L

HW2014B1L Century 1/6 hp 1725 RPM 115V Hot Water Circulator Motor

This Century hot water circulator motor is a universal replacement designed for Bell & Gossett and Armstrong pumps. It directly replaces Armstrong part number 817025-005 and B&G 111061, making it ideal for hot water circulation applications.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1725
• Voltage: 115V 60Hz
• Amperage: 4.1 amps
• Shaft Dimensions: 1/2" diameter x 3/4" length
• Rotation: Counterclockwise (CCW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a bolt circle diameter of 4 5/8" with 1/4" bolt holes for secure mounting. It has a service factor of 1.75, ensuring reliable performance under varying load conditions. This motor is compatible with Dayton 5ELL8 and Rotom CP-R1351 equivalents, providing versatile replacement options.

Cross Reference

• Armstrong number 817025-005, B&G 111061
• Dayton 5ELL8; Rotom Equivalent CP-R1351

Warranty

1 Year Manufacturer Warranty
