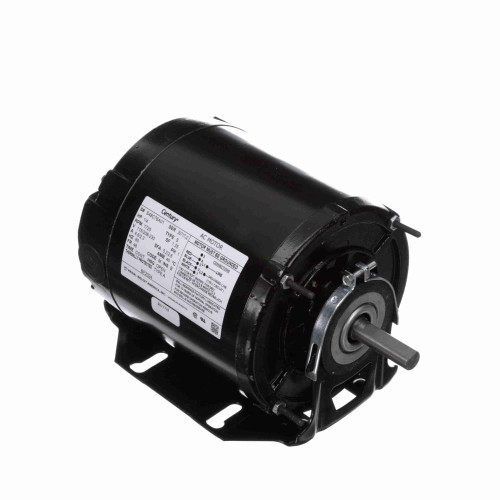

BF2024 Century 1/4 hp 1725 RPM 48 Frame 115V Belt Drive Furnace Motor Ball Brg Century # BF2024

BF2024 Century 1/4 hp 1725 RPM 48 Frame 115V Belt Drive Furnace Motor

This Century BF2024 is a 1/4 horsepower, 1725 RPM belt drive furnace blower motor designed for reliable HVAC performance. It replaces Marathon 4305 and Dayton 4UE79 motors, making it ideal for residential and commercial furnace applications.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 4.6/2.3 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 48 Frame
• Shaft Dimensions: 1/2" diameter x 1 1/2" length, 3" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base and extended thru bolts on the shaft end for secure mounting. It includes a shaft adapter for 5/8" shafts and quick connect terminals for easy wiring. Designed for continuous duty, it offers automatic overload protection, split phase operation, and Class B insulation. Rotation direction can be changed easily to suit installation requirements.

Cross Reference

• Marathon 4305
• Dayton 4UE79

Warranty

1 Year Manufacturer Warranty
