sale
Nidec

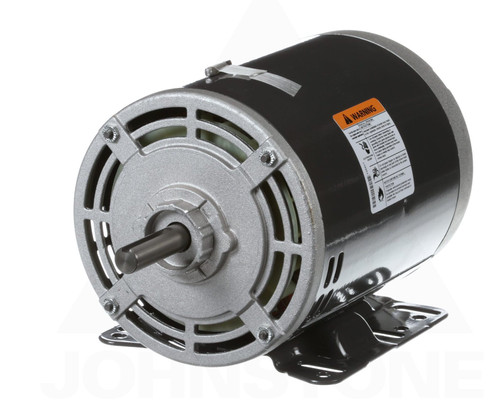

D14P2AH Nidec | 1/4 hp 1800 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D14P2AH Nidec | 1/4 hp 1800 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor
$257.60
$229.99
SKU
D14P2AH
UPC
6.63E+11
Availability
Subject to availability
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
1/4 HP
RPM
1800
Phase
Three Phase
Frame
56H
Enclosure
ODP
Amperage
1.1/0.5 Amps
Bearings
Ball Bearings
Service Factor
1.35
Insulation Class
Class B
Mounting
Rigid Base
Duty
Continuous Duty
- 1/4 hp 1800 RPM, 1.1/0.5 amps 208-230/460 Volts Three Phase Motor
- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- ODP; Service Factor: 1.35, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation

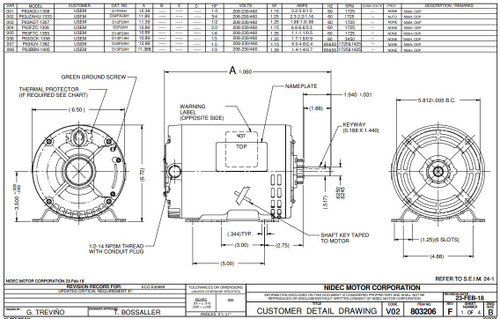

- "C" Dimension = 10.9"
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
P063FTC1355015B
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56H |
| Enclosure | ODP |
| Amperage | 1.1/0.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.35 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
| Duty | Continuous Duty |
