Marathon

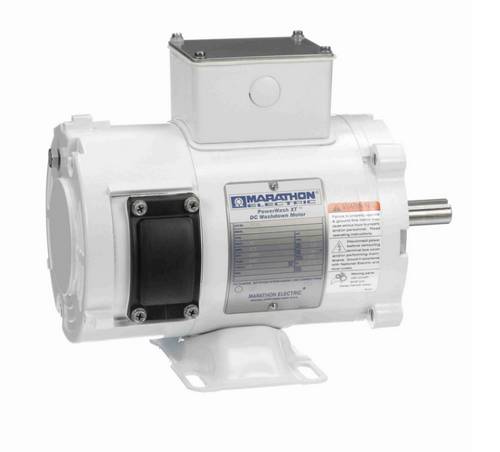

Z630 Marathon 1/4 hp DCPM Washdown 56C Frame C Face TENV 1750 RPM (rigid base) 90V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
Z630 Marathon 1/4 hp DCPM Washdown 56C Frame C Face TENV 1750 RPM (rigid base) 90V Marathon Motor
$773.15
$668.84
SKU
MZ630
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
90V
Horsepower
1/4 HP
RPM
1750
Frame
56C
Enclosure
TENV
Amperage
2.7 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class F
Mounting
C-Face
- 1/4 hp 1750 RPM, 2.7 amps 90 Volts DC current.
- NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- Rigid Base, CCWLE, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Washdown Duty, DC electric motor with a C-face mount. Stainless steel shaft has keyway. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056E17V2001
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 90V |
| Horsepower | 1/4 HP |
| RPM | 1750 |
| Frame | 56C |
| Enclosure | TENV |
| Amperage | 2.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | C-Face |
