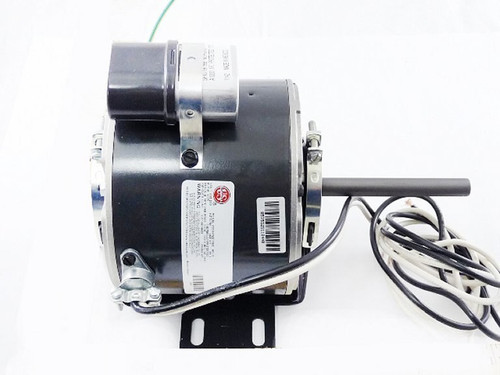

1648 Nidec | 1/5 hp 1075 RPM 1-Speed 208-230V; 5.6" Blower Motor
1648 Nidec | 1/5 hp 1075 RPM 1-Speed 208-230V; 5.6" Blower Motor
1648 Nidec | 1/5 hp 1075 RPM 1-Speed 208-230V; 5.6" Blower Motor
1648 Nidec | 1/5 hp 1075 RPM 1-Speed 208-230V; 5.6" Blower Motor

Nidec

1648 Nidec | 1/5 hp 1075 RPM 1-Speed 208-230V; 5.6" Blower Motor

(No reviews) Write a Review
$339.25
$302.91
SKU 1648
UPC 6.63E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/5 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 2.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Counter-Clockwise
Mounting Stud
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/5 hp 1075 RPM 1-Speed 208-230V 2.0 amps
  • Shaft 1/2" x 2.5"
  • Rotation CCW shaft end
  • 5.6" Diameter
  • Motor case length 4.31"
  • Ball bearings
  • Hub and stud mount
  • Includes capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 24" Leads.  Suggested aftermarket replacement for Hussman condenser fan motor P011-96203, K55HXKWA8573, K55HXSMD-1648, K055SMD1648863B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/5 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 2.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Counter-Clockwise
Mounting Stud
Duty Continuous Duty
!
