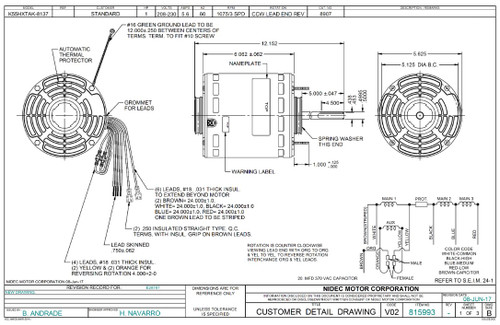

8907 Nidec | 1 hp 1075 RPM 3-Speed 208-230V; 5.6" Blower Motor

8907 Nidec | 1 hp 1075 RPM 3-Speed 208-230V; 5.6" Blower Motor

This 1 horsepower, 3-speed blower motor is designed for HVAC applications requiring reliable airflow and variable speed control. It serves as a direct replacement for compatible Nidec and Century blower motors, ensuring efficient operation in residential and commercial systems.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 6.5-5.6 amps
• Enclosure: Open Air Over
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 0.5" x 5.0"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection for continuous duty operation. It requires a 20 MFD 370V capacitor (Part #20DV) for proper function. The motor includes a band and hub mount configuration for straightforward installation and comes with 24" leads for electrical connections. It is rated for Class B insulation and suitable for ambient temperatures up to 40°C.

Warranty

1 Year Manufacturer Warranty
