1268 Nidec | 1/5 hp 1075 RPM 4-Speed 115V; 5.0" Blower Motor
1268 Nidec | 1/5 hp 1075 RPM 4-Speed 115V; 5.0" Blower Motor
1268 Nidec | 1/5 hp 1075 RPM 4-Speed 115V; 5.0" Blower Motor
1268 Nidec | 1/5 hp 1075 RPM 4-Speed 115V; 5.0" Blower Motor

Nidec

1268 Nidec | 1/5 hp 1075 RPM 4-Speed 115V; 5.0" Blower Motor

(No reviews) Write a Review
$208.15
$186.29
SKU 1268
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/5 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 3.4 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
Rotation Reversible
Duty Continuous Duty
Adding to cart… The item has been added
Description

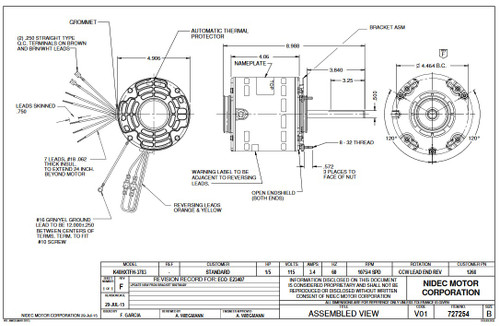

  • 1/5 hp 1075 RPM 4-Speed 115 3.4 amps
  • Shaft 0.5" x 3.84"
  • Rotation: reversible
  • 5.0" Diameter
  • Motor case length 4.06"
  • Sleeve bearings
  • Hub and stud mounting
  • 4MFD 370V Capacitor REQUIRED (Our Part #4DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Air Over Enclosure; Class B Insulation; 40C Ambient Temperature; 24" Leads, 50/60 Hertz. Suggested after market replacement for Lennox condenser fan motor 97M6201, K55HXLTC-248, K55HXKVD1268

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/5 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 3.4 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
Rotation Reversible
Duty Continuous Duty
!
