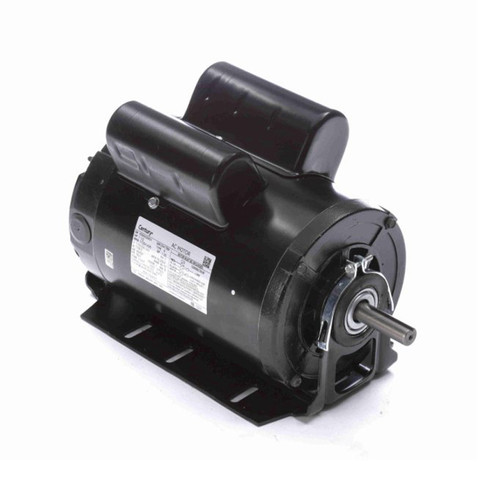

RB1154AV1 Century 1.5 hp 1725 RPM 56H Frame 115/208-230V 60 hz Belt Drive Cap Start Blower Motor Century # RB1154AV1

RB1154AV1 Century 1.5 hp 1725 RPM 56H Frame Belt Drive Capacitor Start Blower Motor

This Century RB1154AV1 motor is a 1.5 horsepower, 1725 RPM belt drive blower motor designed for HVAC and industrial applications. It is a direct replacement part suitable for systems requiring a 56H frame motor with capacitor start and reversible rotation.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 115/208-230 V
• Amperage: 17.0/8.5 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56H
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base for stable mounting and quick connect terminals for easy wiring. It includes automatic overload protection and is designed for continuous duty operation. The shaft rotation can be easily changed to accommodate different blower configurations, and the motor is constructed with Class B insulation for durability in demanding environments.

Warranty

1 Year Manufacturer Warranty
