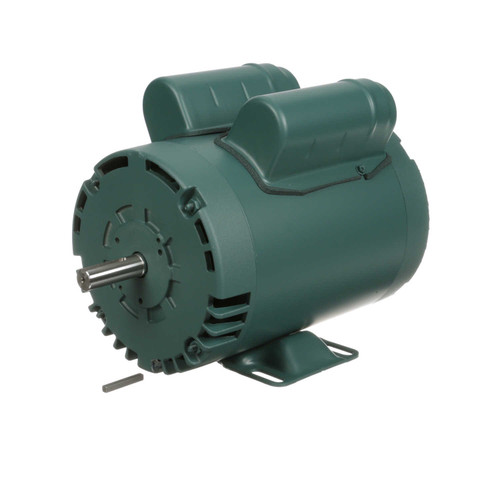

- 1.5 hp 1725 RPM, 13.0/6.5 amps 115/208-230 Volts 60hz. single Phase Motor
- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15 - overload protection = Manual
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty

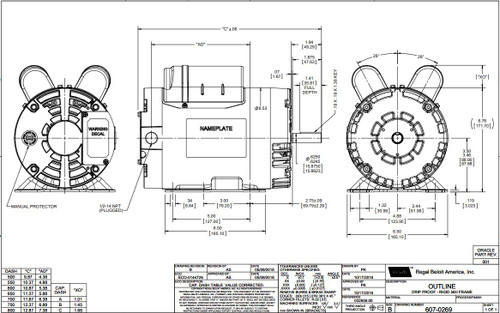

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
M6K17DB55AA, E113266.00, 113266.00
