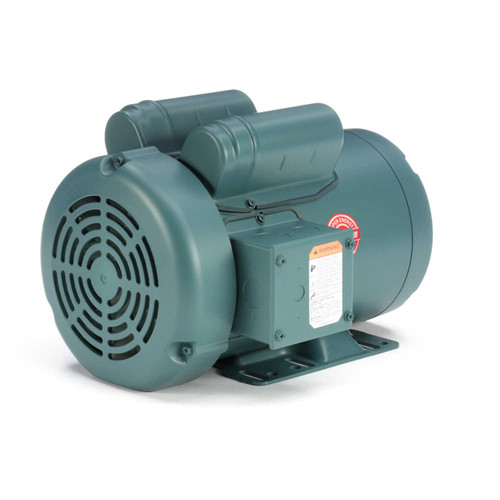

113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts
113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts

Leeson

113769.00 Leeson | 1.5 hp 1725 RPM 56H Frame TEFC 115/208-230 Volts

(No reviews) Write a Review
$933.80
$791.78
SKU 113769
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1-1/2 HP
RPM 1725
Phase Single Phase
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 13.0/6.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1.5 hp 1725 RPM, 13.0/6.5 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

M6K17FB37G, 113769.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1-1/2 HP
RPM 1725
Phase Single Phase
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 13.0/6.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
