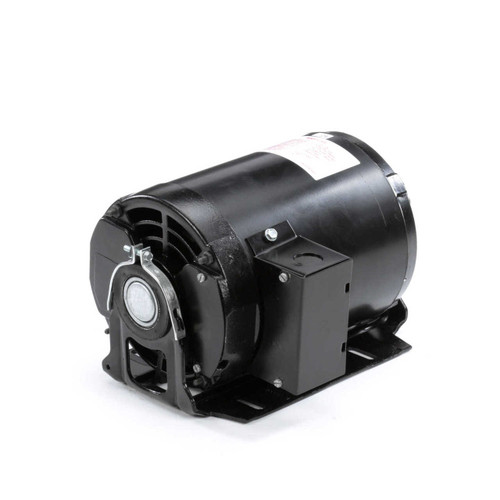

RB3154A Century 1.5 hp 1725 RPM 56H Frame 208-230/460V Belt Drive Blower Motor Century # RB3154A

RB3154A Century 1.5 hp 1725 RPM 56H Frame 208-230/460V Belt Drive Blower Motor

The RB3154A is a durable 1.5 horsepower blower motor designed for belt drive applications. It replaces Century model RB3154A and is suitable for industrial and HVAC systems requiring reliable three-phase power.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 208-230/460 V, 60/50 Hz
• Amperage: 4.6/2.3 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56H Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient cradle base for stable mounting and automatic overload protection for enhanced durability. It operates at a single speed with a continuous duty rating and Class B insulation. The motor’s reversible rotation and standard shaft dimensions ensure compatibility with a wide range of blower assemblies.

Warranty

1 Year Manufacturer Warranty
