RB3154AV1 Century 1.5 hp 1725 RPM 56HZ Frame 208-230/460V Belt Drive Blower Motor Century # RB3154AV1

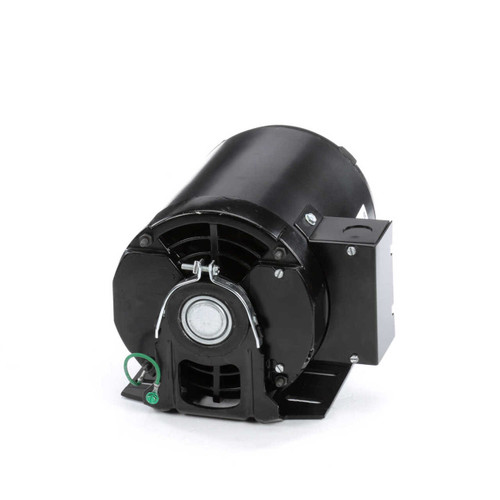

RB3154AV1 Century 1.5 hp 1725 RPM 56HZ Frame 208-230/460V Belt Drive Blower Motor

The RB3154AV1 is a reliable 1.5 horsepower, 3-phase belt drive blower motor designed for industrial and HVAC applications. It serves as a direct replacement for Century motors, including Dayton model 48Y957, offering consistent performance in various blower systems.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 208-230/460V, 60/50 Hz
• Amperage: 4.6/2.3 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56HZ Frame
• Shaft Dimensions: 7/8" diameter x 2 5/16" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient cradle base for stable mounting and automatic overload protection for enhanced durability. It operates continuously with Class B insulation and includes a single-speed configuration suitable for a wide range of blower applications.

Warranty

1 Year Manufacturer Warranty
