113938.00 Leeson | 1.5 hp 1725 RPM 56HZ Frame TEFC (Farm Duty) 115/208-230V

113938.00 Leeson | 1.5 hp 1725 RPM 56HZ Frame TEFC (Farm Duty) 115/208-230V

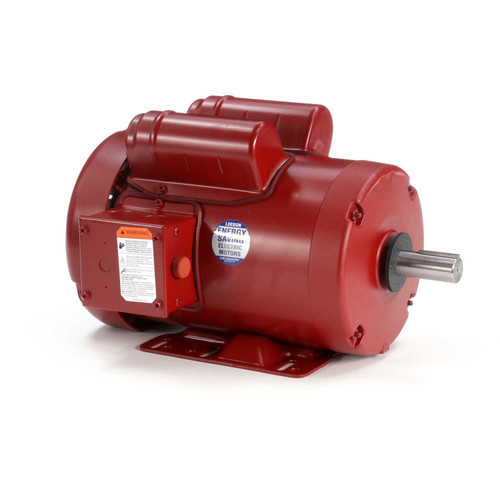

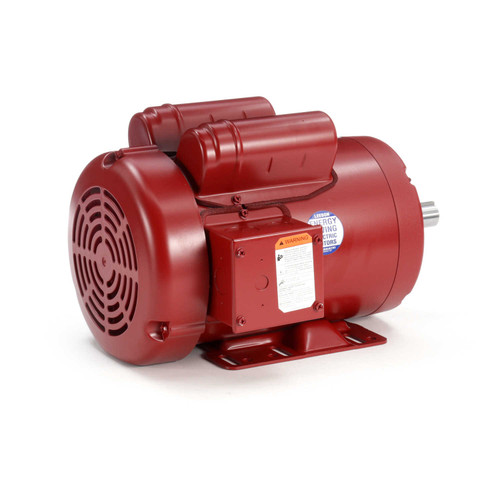

This Leeson 1.5 hp farm duty motor is designed for demanding industrial and agricultural applications. It replaces standard motors where high starting torque and protection against environmental contaminants like sawdust, dirt, and oil are required.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 115/208-230 V
• Amperage: 17.2/8.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56HZ Frame
• Shaft Dimensions: 7/8" diameter x 2 1/4" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

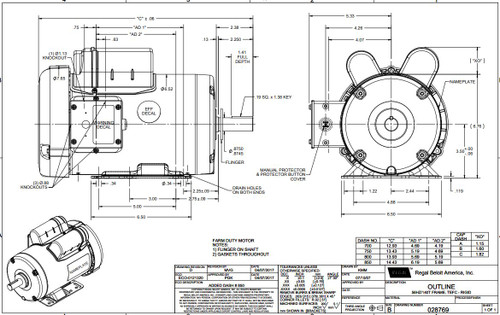

This single-phase capacitor start motor features manual overload protection and a service factor of 1.15. It mounts on a flat rigid base with a standard NEMA 145T frame and six mounting holes (3" x 5"-6"). Designed for harsh environments, it includes double sealed bearings with Exxon grease rated for -20°F to +350°F, a gasketed junction box and capacitor covers, and a rubber boot over the reset button for added protection. Its total length measures 13.25", making it suitable for woodworking and other industrial machinery exposed to airborne particles.

Warranty

• DATA SHEET
