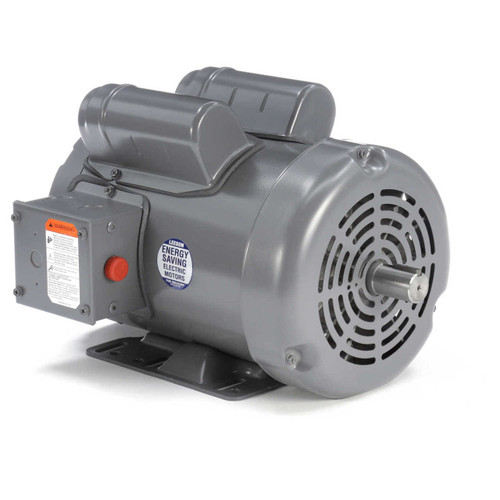

111330.00 Leeson | 1.5 hp 1725 RPM 56HZ Frame 115/208-230V Grain Stirring Farm Electric Motor
$688.85
$584.20
SKU
111330
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1-1/2 HP
RPM
1725
Frame
56HZ
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.6/17.2 Amps
Insulation Class
Class B
Mounting
Rigid Base
111330.00 Leeson | 1.5 hp 1725 RPM 56HZ Frame 115/208-230V Grain Stirring Farm Electric Motor
This Leeson 1.5 hp electric motor is designed for grain stirring applications, specifically for interior grain bin installations. It replaces similar motors such as the Dayton 36X621 (Model M6K17FB18J) and is engineered to operate reliably in dust-tight environments.
Key Specifications
- Horsepower: 1.5 hp
- RPM: 1725
- Voltage: 115/208-230V
- Amperage: 8.6/17.2 amps
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: 56HZ Frame
- Shaft Dimensions: 7/8" Diameter x 1.31" Length
- Rotation: Reversible
- Bearings: Oversized, moisture resistant
Product Features & Fitment
This motor features a capacitor start and capacitor run design with a rigid base for stable mounting. It includes manual overload protection and a service factor of 1.0. The external cooling fan at the shaft end prevents grain from obstructing fan operation, enhancing durability in dusty grain bin environments.
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1-1/2 HP |
| RPM | 1725 |
| Frame | 56HZ |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.6/17.2 Amps |
| Insulation Class | Class B |
| Mounting | Rigid Base |
Related Products
sale
Sold out

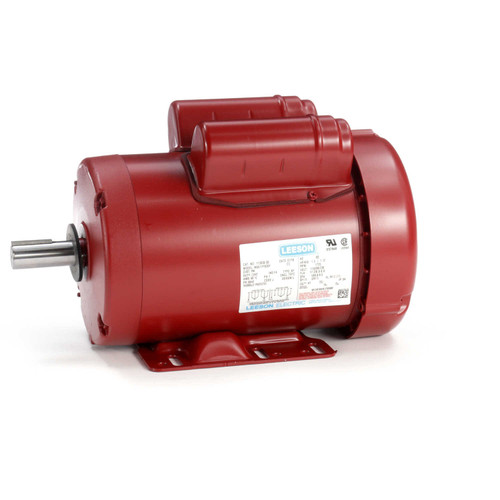

113938.00 Leeson | 1.5 hp 1725 RPM 56HZ Frame TEFC (Farm Duty) 115/208-230V
