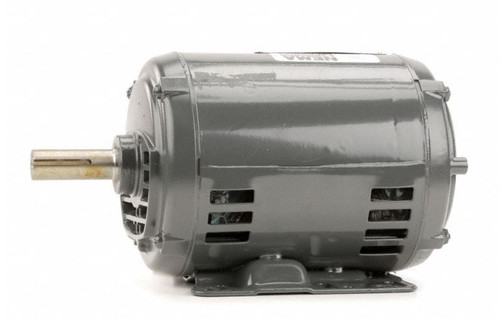

D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor
D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor
D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor
D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor
D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor
D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor

Nidec

D32P2H Nidec | 1.5 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor

(No reviews) Write a Review
$437.00
$389.85
SKU D32P2H
UPC 6.63E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 1-1/2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure ODP
Amperage 4.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1.5 hp 1800 RPM, 4.9 amps 200 Volts Three Phase Motor
  • NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FC90, Dayton 6YT99



Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 1-1/2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure ODP
Amperage 4.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
