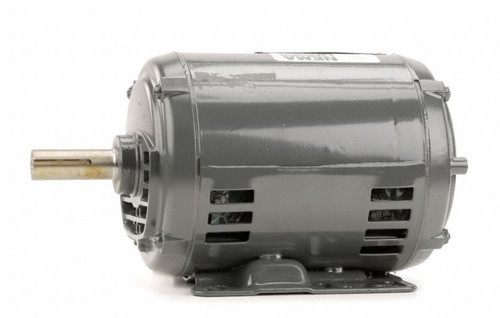

D2P2H Nidec | 2 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor

D2P2H Nidec | 2 hp 1800 RPM 145T Frame 200V Open Drip Nidec Electric Motor

This Nidec electric motor is a general-purpose, three-phase motor designed for continuous duty applications. It is suitable for replacing similar 2 hp motors requiring a 145T frame and 200V power supply, commonly used in industrial and HVAC equipment.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 6.4 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, Keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes Class F insulation for enhanced thermal protection. It operates efficiently at ambient temperatures up to 40°C and includes a wiring diagram on the motor nameplate for easy electrical connection. This premium efficient motor does not include overload protection and is designed for versatile use across various industrial applications.

Warranty

1 Year Manufacturer Warranty
