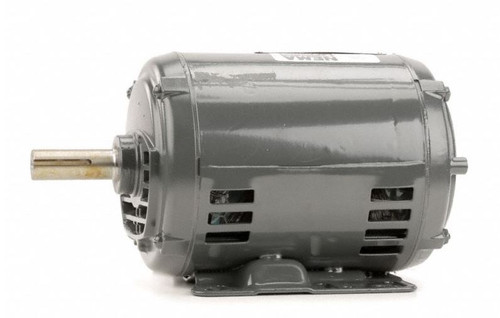

D2P1H Nidec | 2 hp 3600 RPM 145T Frame 200V Open Drip Nidec Electric Motor

SKU:
D2P1H
Availability:
Subject to availability
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $420.00
Now: $374.70
Adding to cart… The item has been added
  • 2 hp 3600 RPM, 5.6 amps 200 Volts Three Phase Motor
  • NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FE31
