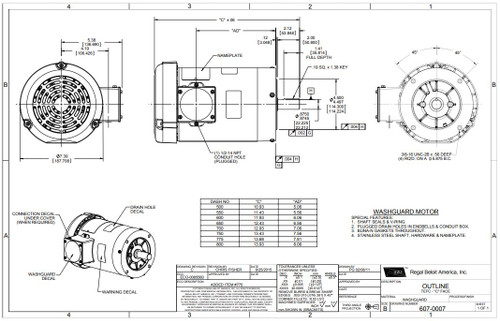

122180.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC (no base) C-Face 208/230-460V Wash Down Duty

122180.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC (no base) C-Face 208/230-460V Wash Down Duty

This Leeson 1.5 hp, 1800 RPM three-phase motor is designed for wash down duty applications requiring durability and moisture resistance. It replaces models 120761.00, G121655.00, Marathon N650A, and 143TTWR16030, making it a reliable choice for industrial motor replacements.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 208/230-460 V
• Amperage: 4.8/2.4 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length

Product Features & Fitment

This Leeson Washguard motor features a round body design without a base and includes a keyed shaft for secure coupling. It is constructed with a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture resistance. The motor utilizes the IRIS insulation system and is coated with durable Rust-Oleum white epoxy paint, making it ideal for harsh wash down environments.

Cross Reference

• 120761.00, G121655.00
• Replaces Marathon N650A, 143TTWR16030

Warranty

1 Year Manufacturer Warranty
