122184.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC (no base) C-Face 208-230/460V Wash Down Duty

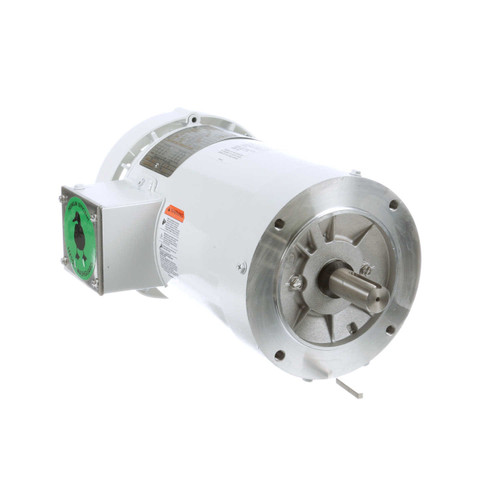

122184.00 Leeson 3 hp 3600 RPM 145TC Frame TEFC Wash Down Duty Motor

This Leeson 3 hp, 3600 RPM three-phase motor is designed for wash down duty applications and replaces Marathon N655B and G120987.00 models. It features a NEMA 145TC frame with a keyed shaft and is suitable for industrial environments requiring moisture resistance and durability.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 8.0/4.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: 145TC
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length

Product Features & Fitment

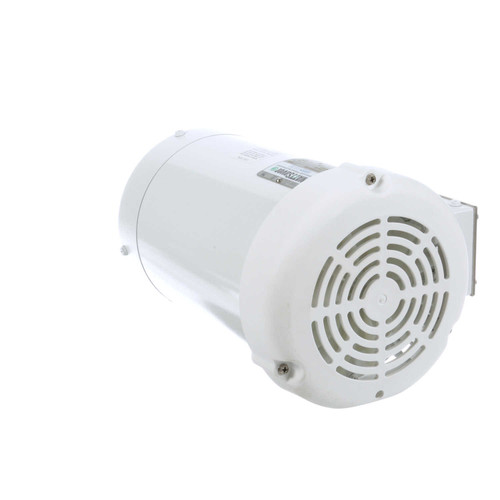

This Leeson Washguard motor features a round body design without a base and a C-face mounting. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard for enhanced corrosion resistance. The motor is coated with durable Rust-Oleum white epoxy paint and incorporates special gaskets, slingers, seals, and four endshield drains to provide superior moisture shedding. The IRIS insulation system and moisture-resistant interior components ensure reliable operation in wash down environments.

Cross Reference

• G120987.00
• Replaces Marathon N655B, 145TTWR16005

Warranty

1 Year Manufacturer Warranty
