113300.00 Leeson | 1.5 hp 1800 RPM 56HC Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

113300.00 Leeson | 1.5 hp 1800 RPM 56HC Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

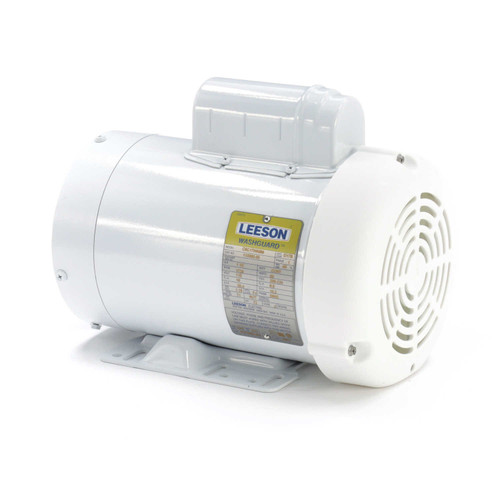

This Leeson 1.5 hp, 1800 RPM single-phase motor is designed for wash down duty applications, offering reliable performance with moisture-resistant features. It replaces Marathon N545 and 56C17W5335 models, making it suitable for industrial environments requiring durable, corrosion-resistant motors.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 19.0/9.5 A

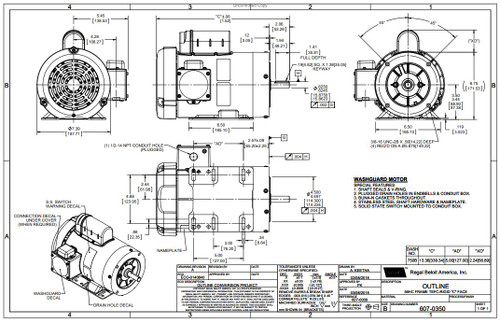

• Frame / Diameter: NEMA 56HC
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Enclosure: Rigid Base C-Face

Product Features & Fitment

This Leeson Washguard motor features a rust-resistant white epoxy coating and stainless steel components including the shaft, conduit box cover, nameplate, and fan guard for enhanced durability in wash down environments. It incorporates special gaskets, slingers, seals, and four endshield drains to protect internal components from moisture. The motor also utilizes the IRIS insulation system and Class F insulation for improved thermal protection.

Cross Reference

• Marathon N545, 056C17W5335

Warranty

1 Year Manufacturer Warranty
