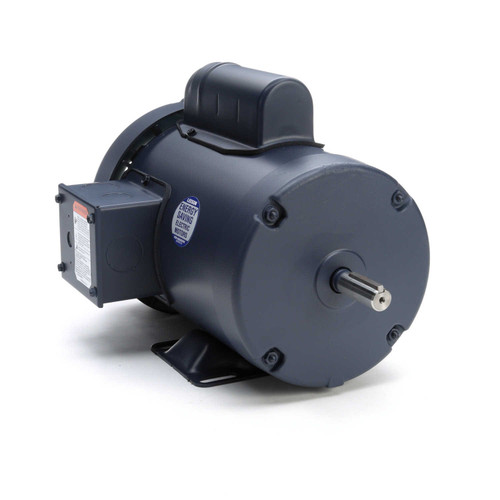

110094.00 Leeson | 1.5 hp 3450 RPM 56 Frame TEFC 115/208-230 Volts
This Leeson 1.5 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces similar NEMA 56 frame motors and is suitable for various industrial and HVAC uses.
Key Specifications
- Horsepower: 1.5 hp
- RPM: 3450
- Voltage: 115/208-230 Volts
- Amperage: 17.0/8.5 amps
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment

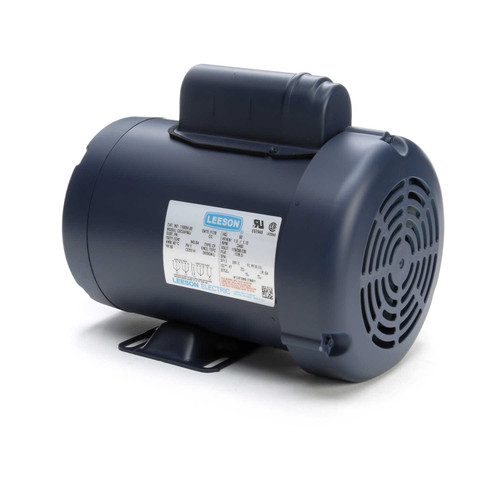

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. Its Class B insulation and ball bearings ensure durability and efficient operation in demanding environments.
Warranty
1 Year Manufacturer Warranty
