131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts
131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts

Leeson

131637.00 Leeson | 3 hp 3450 RPM 182T Frame TEFC 115/208-230 Volts

(No reviews) Write a Review
$1,136.20
$782.92
SKU 131637
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/208/230V
Horsepower 3 HP
RPM 3450
Phase Single Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 26.8/13.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3450 RPM, 26.8/13.4 amps 115/230 Volts 60hz. single Phase Motor
  • NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • TEFC = Totally Enclosed Fan cooled.
  • 1 Year Manufacture Warranty

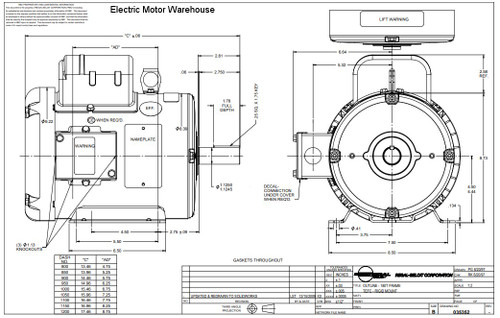

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate.

C182K34FB2C, 131637.00
Replaces Century/AO Smith K222, K222M2

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/208/230V
Horsepower 3 HP
RPM 3450
Phase Single Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 26.8/13.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
